12 x 14mm Diametric

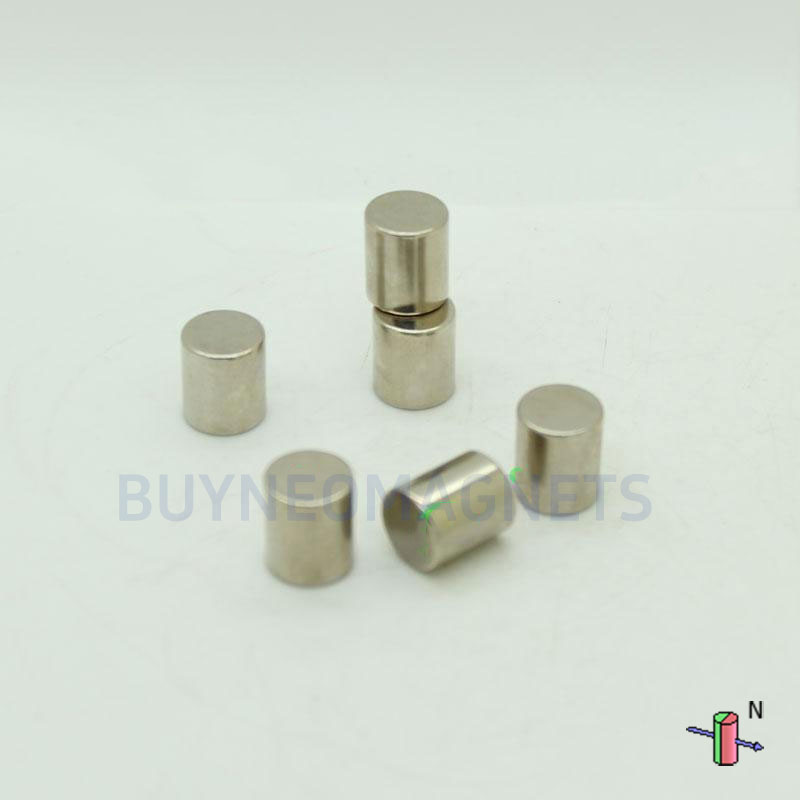

12mm x 14mm Diametrically Magnetized Neodymium Disc Magnet N40 12x14mm Rare Earth Diametric Magnets (5 Pack)

$14.75

Material	NdFeB, Grade N40
Shape	Disc / Cylinder
Diameter	12 mm
Height	14 mm
Tolerance	+/- 0.1 mm
Coating	Nickel-plated (Ni-Cu-Ni)
Magnetisation	Diametrically Magnetized
Strength	approx. 6 kg
Max. working temperature	176°F (80°C)
Weight(1 piece)	12 g

These magnets are sold in packs of 5. Order a quantity of 1 and get 5 magnets. Order a quantity of 2 and get 10 magnets. Order a quantity of 3 and get 15…

Email us for even bigger discounts on higher order quantities.

Item in Stock | Shipping worldwide within 24 hours

Description
Reviews (0)

Dimensions: 12mm dia x 14mm thick
Tolerances: ±0.1mm x ±0.1mm
Material: Sintered NdFeB, Grade N38
Plating/Coating: Nickel-Plated (Ni-Cu-Ni)
Surface Field: approx. 2890 Gauss
Magnetization Direction: Diametrical
Max Operating Temp: 176ºF (80ºC)

These discs are “diametrically magnetized,” which means that the poles are located on opposite sides of the circular shape, not in the center of the circular flat surfaces like most disc magnets. The magnets will tend to want to line up side-to-side rather than stack on the flat surfaces. The unusual magnetization makes them an interesting disc to experiment with.
