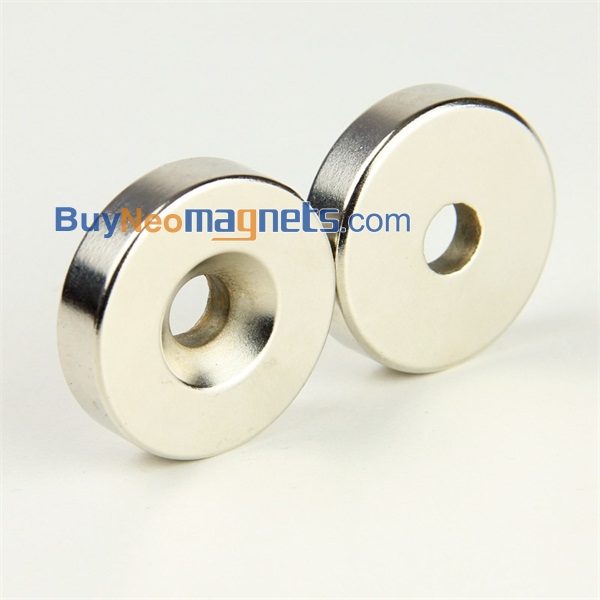

40mm x 10mm Thick with Countersunk Hole M10mm N35 Strong Rare Earth NdFeb Neodymium Countersunk Ring Magnets
$17.59
| Model ID | DCS-40-10-10-N |
| Material | NdFeB, Grade N35 |
| Shape | Disc Countersunk |
| Dimensions | 40mm od x 10mm thick with countersunk hole 10mm |
| Tolerance | +/-0.1 mm |
| Coating | Nickel-plated (Ni-Cu-Ni) |
| Magnetisation | Axial (Poles on Flat Ends) |
| Max Operating Temp | 176ºF (80ºC) |
| Weight(1 piece) | 85 g |
These rings are sold by the pair. One will have the north pole on the side with the large end of the hole and one will have the south pole on that side, so they will attract each other when they are screwed in.
Email us for even bigger discounts on higher order quantities.
Item in Stock | Shipping worldwide within 24 hours
- Dimensions: 40mm dia. x 10mm thick x 10mm hole
- Magnetic Face: 40 mm diameter face
- Magnets Type: Permanent
- Material: NdFeB, Neodymium
- Grade: N35
- Plating/Coating: Ni-Cu-Ni (Nickel-plated)
- Magnetization Direction: Axial(Poles on Flat Ends)
- Weight: 85 g/piece
- Hole type: Countersunk Hole
- Max Operating Temp: 176ºF (80ºC)
- Quantity: 2 pcs
