6 x 2.5mm Diametric

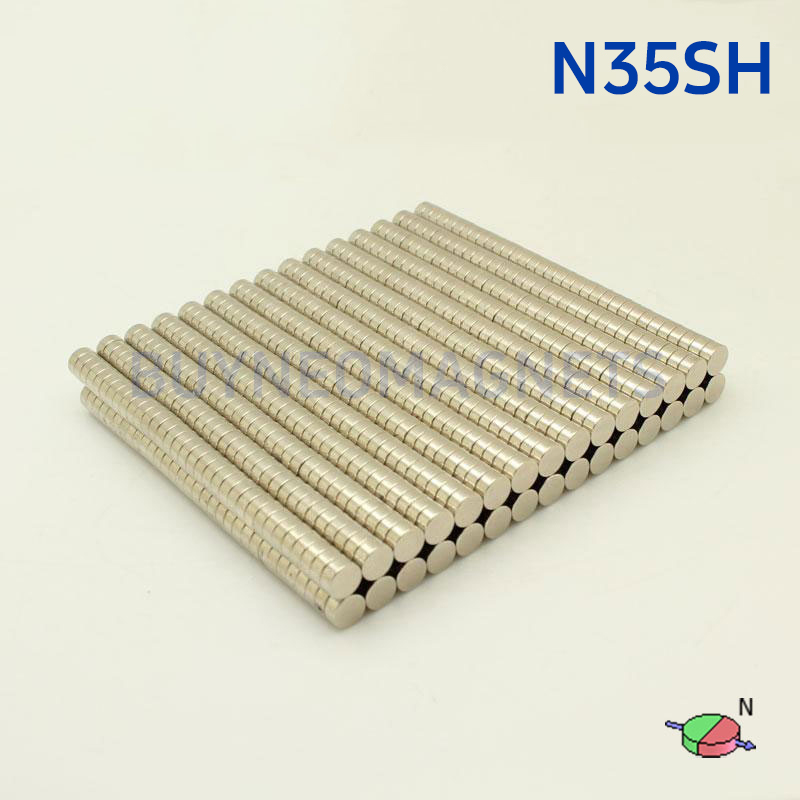

6mm x 2.5mm Diametrically Magnetized Neodymium Disc Magnet N35SH 6x2.5mm Rare Earth Diametric Magnets (100 Pack)

6mm x 2.5mm Diametrically Magnetized Neodymium Disc Magnet N35SH 6×2.5mm Rare Earth Diametric Magnets (100 Pack)

$18.75

Material	NdFeB, Grade N35SH
Shape	Disc / Cylinder
Diameter	6 mm
Height	2.5 mm
Tolerance	+/- 0.1 mm
Coating	Nickel-plated (Ni-Cu-Ni)
Magnetisation	Diametrically Magnetized
Strength	approx. 0.25 kg
Max. working temperature	150°C
Weight(1 piece)	0.5 g

These magnets are sold in packs of 100. Order a quantity of 1 and get 100 magnets. Order a quantity of 2 and get 200 magnets. Order a quantity of 3 and get 300…

Email us for even bigger discounts on higher order quantities.

Item in Stock | Shipping worldwide within 24 hours

Description
Reviews (0)

Dimensions: 6mm dia x 2.5mm thick
Tolerances: ±0.1mm x ±0.1mm
Material: Sintered NdFeB, Grade N35SH
Plating/Coating: Nickel-Plated (Ni-Cu-Ni)
Surface Field: approx. 5125 Gauss
Magnetization Direction: Diametrical
Max Operating Temp: 150ºC

These discs are “diametrically magnetized,” which means that the poles are located on opposite sides of the circular shape, not in the center of the circular flat surfaces like most disc magnets. The magnets will tend to want to line up side-to-side rather than stack on the flat surfaces. The unusual magnetization makes them an interesting disc to experiment with.
