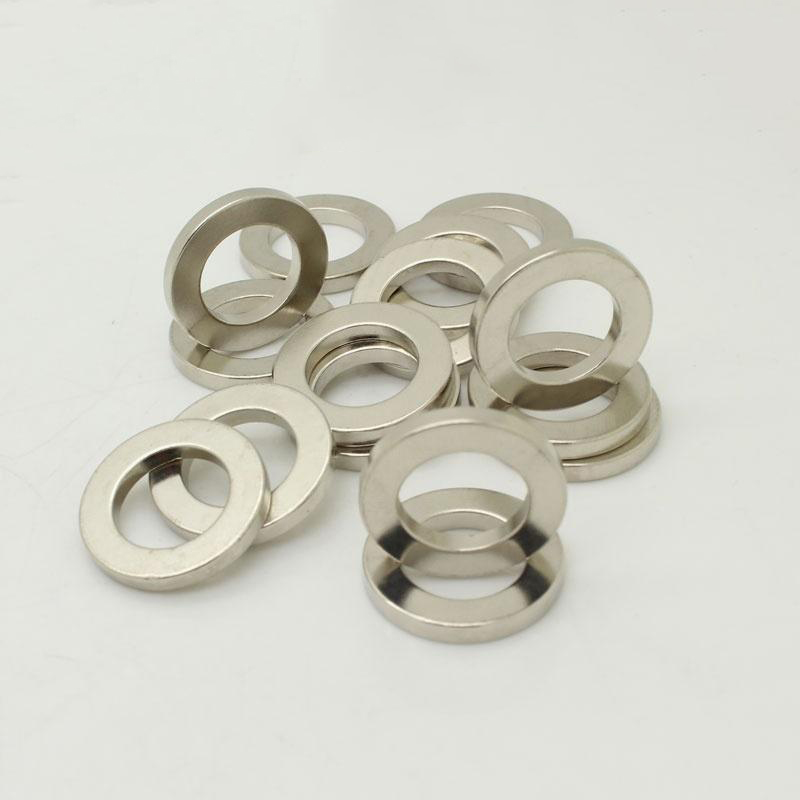

24mm od x 15mm id x 3mm thick Neodymium Ring Magnet N35 Strong Rare Earth Ring Magnets for Sale
$11.59
| Model ID | R-24-15-03-N |
| Material | NdFeB, Grade N35 |
| Shape | Ring |
| Outer diameter | 24 mm |
| Inner diameter | 15 mm |
| Height | 3 mm |
| Tolerance | +/-0.1 mm |
| Coating | Nickel-plated (Ni-Cu-Ni) |
| Magnetisation | Axial (Poles on Flat Ends) |
| Max. working temperature | 80°C(176°F) |
| Weight | 6.19 g/piece |
Email us for even bigger discounts on higher order quantities.
Item in Stock | Shipping worldwide within 24 hours
- Dimensions: 24mm Outer Diameter x 15mm Inner Diameter x 3mm Thickness
- Shape: Ring / Circular
- Composite: Neodymium Magnet
- Magnets Type: Permanent
- Surface Gauss: 2900 Gauss
- Material: NdFeB, Neodymium, Rare Earth
- Grade: N35
- Plating / Coating: Ni-Cu-Ni (Nickel-Plated) – Each magnet is coated with three layers of nickel, copper and nickel to give superior corrosion resistance and provide a smooth and clean finish
- Magnetization Direction: Axial (Poles on the 24mm diameter face)
- Weight: 6.19 g/piece
- Max Operating Temp: 176°F (80°C)
- Max Curie temperature: 310°C
- Tolerance: +/-0.1mm (+/- 0.004″)
- Application: fishing magnets, lifting magnets, Office Magnets, industrial rare earth magnets
- Certification: RoHS Compliant
- Production: Sintered
- Warning: NEODYMIUM MAGNETS ARE NOT SAFE FOR CHILDREN.
