28mm x 12mm x 4mm thick with Double Countersunk Holes 4mm N35 Strong Block Rare Earth Neodymium Countersunk Magnet (10 Pack)
$18.99
| Model ID | BDCS-28-12-04-04-N |
| Material | NdFeB, Grade N35 |
| Shape | Block Countersunk |
| Dimensions | 28mm x 12 mm x 4mm thick with 2 holes 4 mm |
| Tolerance | +/-0.1 mm |
| Coating | Nickel-plated (Ni-Cu-Ni) |
| Magnetisation | Axial (Poles on Flat Ends) |
| Weight(1 piece) | 6.1 g |
These magnets are sold in packs of 10. Order a quantity of 1 and get 10 magnets. Order a quantity of 2 and get 20 magnets. Order a quantity of 3 and get 30…
Email us for even bigger discounts on higher order quantities.
Item in Stock | Shipping worldwide within 24 hours

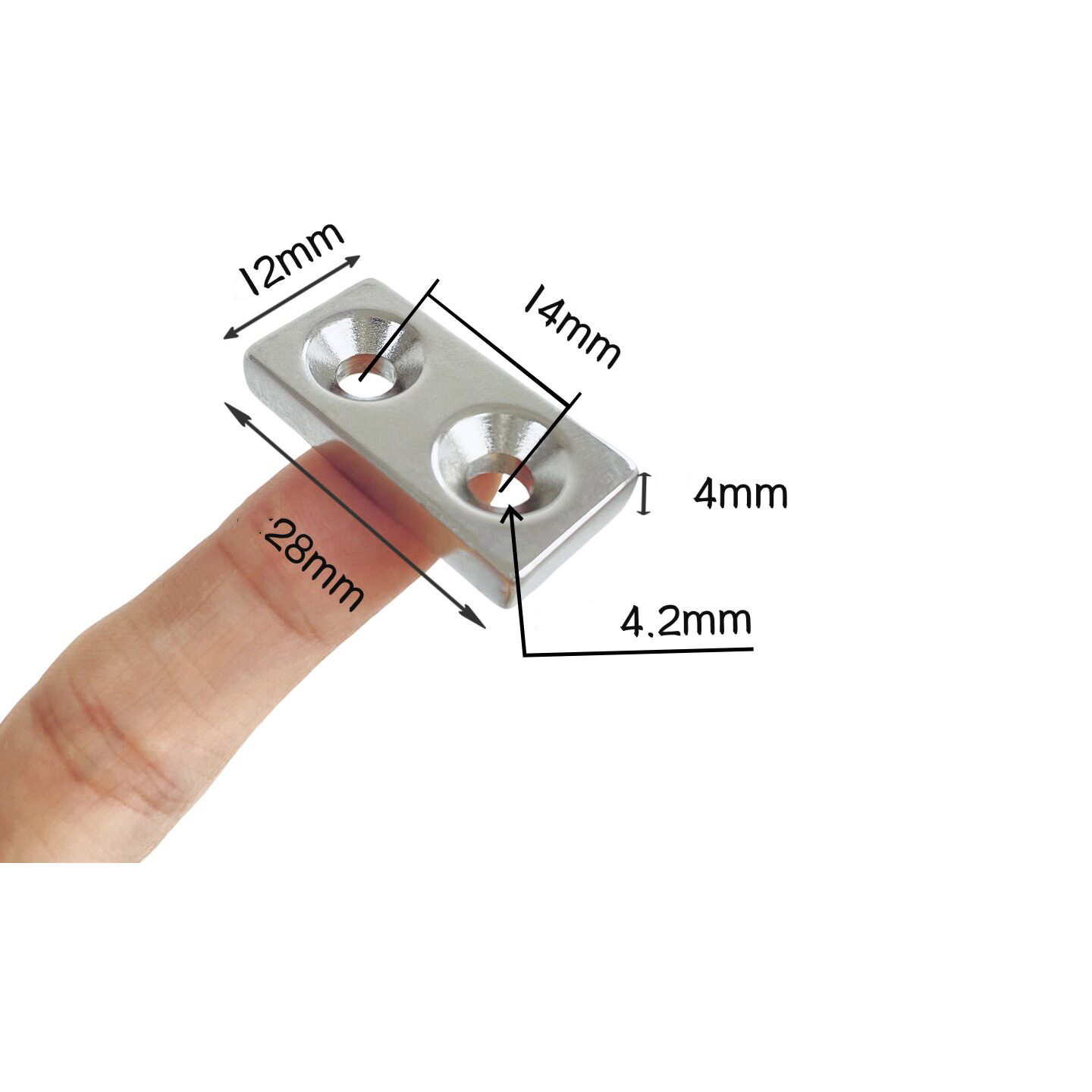

- Dimensions: 28mm x 12mm x 4 mm with 2 countersunk hole 4mm
- Magnetic Face: 28x12mm flat face
- Magnets Type: Permanent
- Material: NdFeB, Neodymium
- Grade: N35
- Plating/Coating: Ni-Cu-Ni (Nickel-plated)
- Magnetization Direction: Axial(Poles on Flat Ends)
- Weight: 6.1 g/piece
- Hole type: double countersunk hole
- Max Operating Temp: 176ºF (80ºC)
Here we offer the popular size of 28mm x 12mm x 4 mm thickness with holes for two screws to allow for easy fastening. it is magnetized with the south pole on the countersink side.
