3 x 20mm Diametric
3mm x 20mm Diametrically Magnetized Neodymium Disc Magnet N52 3x20mm Rare Earth Diametric Magnets (20 Pack)
$15.75
| Material | NdFeB, Grade N52 |
| Shape | Disc / Cylinder |
| Diameter | 3 mm |
| Height | 20 mm |
| Tolerance | +/- 0.1 mm |
| Coating | Nickel-plated (Ni-Cu-Ni) |
| Magnetisation | Diametrically Magnetized |
| Strength | approx. 0.45 kg |
| Max. working temperature | 176°F (80°C) |
| Weight(1 piece) | 1.1 g |
These magnets are sold in packs of 20. Order a quantity of 1 and get 20 magnets. Order a quantity of 2 and get 40 magnets. Order a quantity of 3 and get 60…
Email us for even bigger discounts on higher order quantities.
Item in Stock | Shipping worldwide within 24 hours

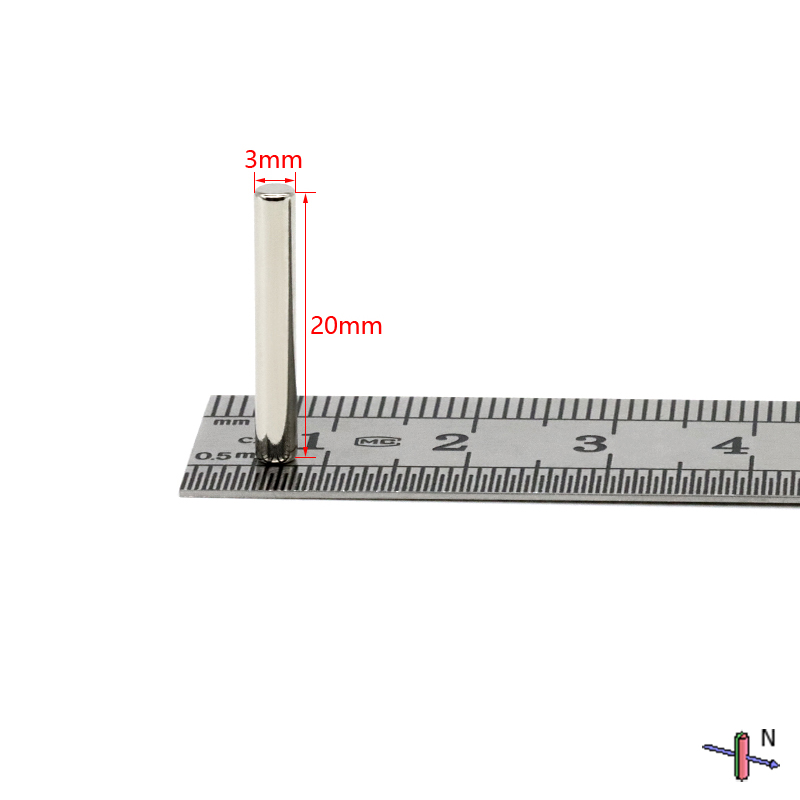

Dimensions: 3mm dia x 20mm thick
Tolerances: ±0.1mm x ±0.1mm
Material: Sintered NdFeB, Grade N52
Plating/Coating: Nickel-Plated (Ni-Cu-Ni)
Surface Field: approx. 5125 Gauss
Magnetization Direction: Diametrical
Max Operating Temp: 176ºF (80ºC)
These discs are “diametrically magnetized,” which means that the poles are located on opposite sides of the circular shape, not in the center of the circular flat surfaces like most disc magnets. The magnets will tend to want to line up side-to-side rather than stack on the flat surfaces. The unusual magnetization makes them an interesting disc to experiment with.
